Application
This machine is widely used in transformer vacuum drying, GIS vacuum drying, transformer installation vacuum drying, etc.
Features
● Designed with efficient multi stages vacuum system, equipped with Germany brand vacuum pump, with high degree of automation, compact volume, light weight, and flexible and convenient movement.
● The device has the function of vacuum drying and oil injection for transformers. Vacuum pumping and oil injection, low energy consumption, and intuitive intelligent instrument display. The leakage rate of the device itself is less than 0.1%. The vacuum pumping unit is equipped with an anti oil return device, and the power supply is equipped with a phase sequence automatic protection function to prevent the vacuum pump from reversing, which is simple and practical.
● Advanced vacuum check device can prevent gas reversal, vacuum leakage, oil leakage, and other phenomena in abnormal sudden shutdown situations.
Optional
● Outdoor weather-proof enclosure
● Trailer mounted type to increase mobility
● Explosion-proof type
● PLC & HMI touch panel control
● Automatic water drainage
● Customizable design, material and components
Technical Parameters
Name
Model
EKO-GZ70
EKO-GZ150
EKO-GZ300
EKO-GZ600
EKO-GZ1200
Working Power
400 V 3 - Phase 50 HZ
Matched Power
KW
4
6.5
7.5
11.5
18.5
Ultimate Vacuum
Pa
≤3
Pumping Rate
L/S
70
150
300
600
1200
Pumping Class
2 Class
Pipe Diameter
mm
50
80
Dimension
cm
120×95×150
130×100×160
140×110×170
160×120×190
175×130×210
Weight
Kg
250
400
500
1250
1560
Note: The dimension and weight is updating according to the improving technical. Pls take the real product as standard.

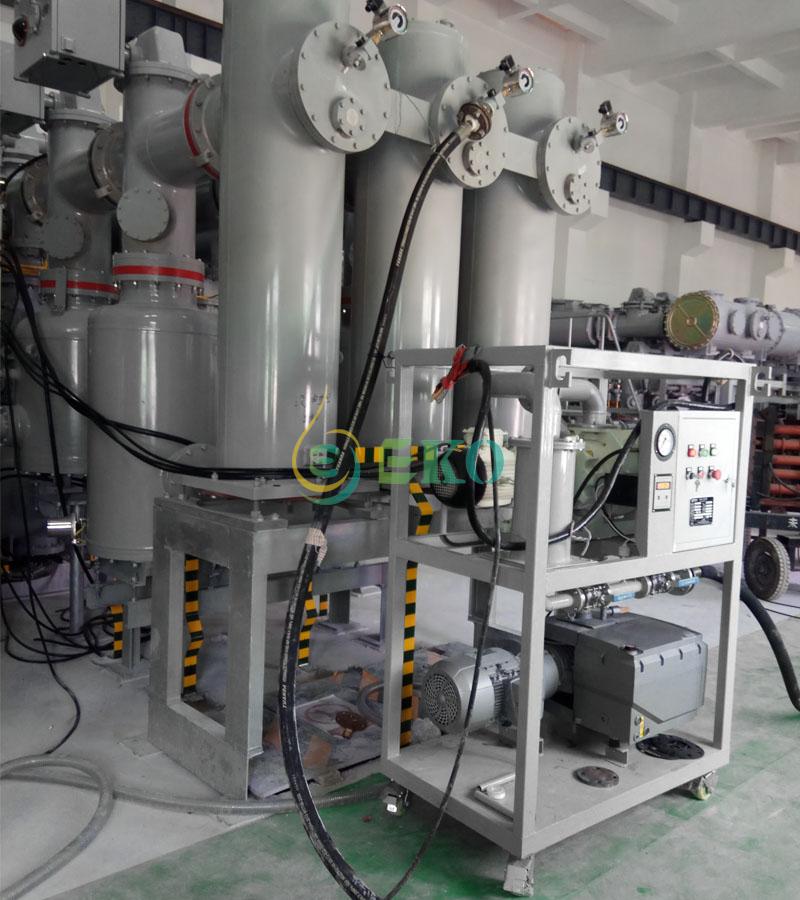

Using Site
